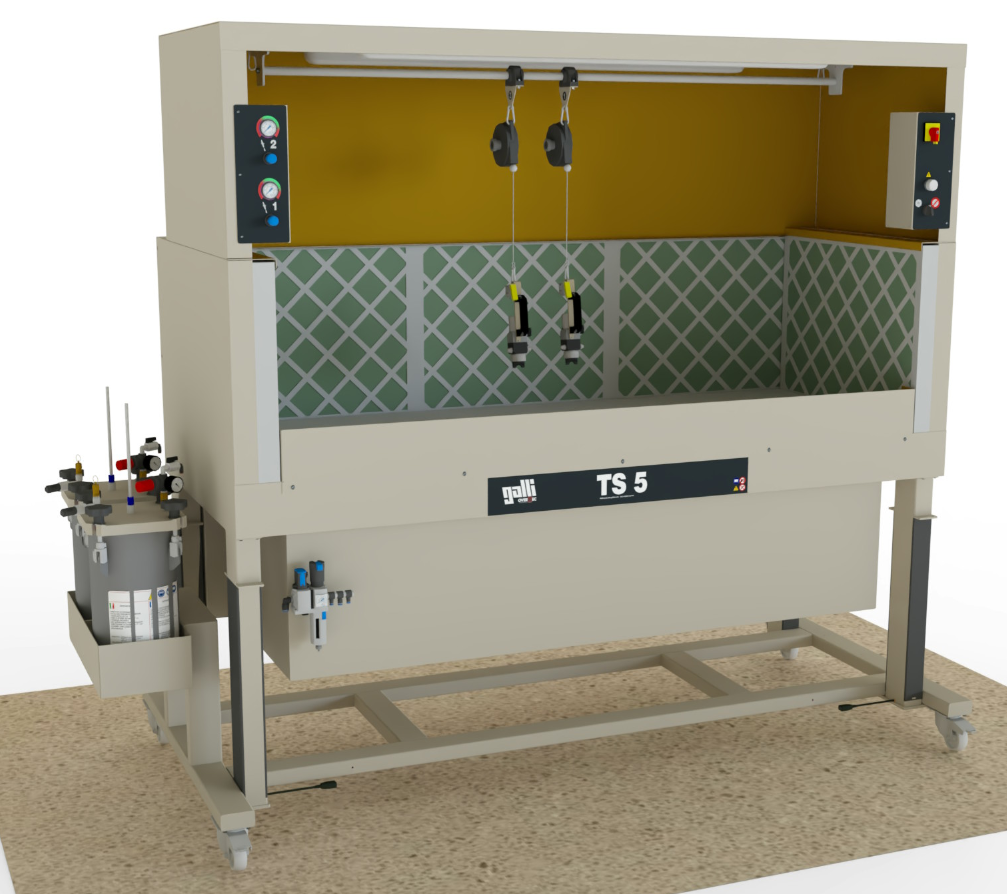

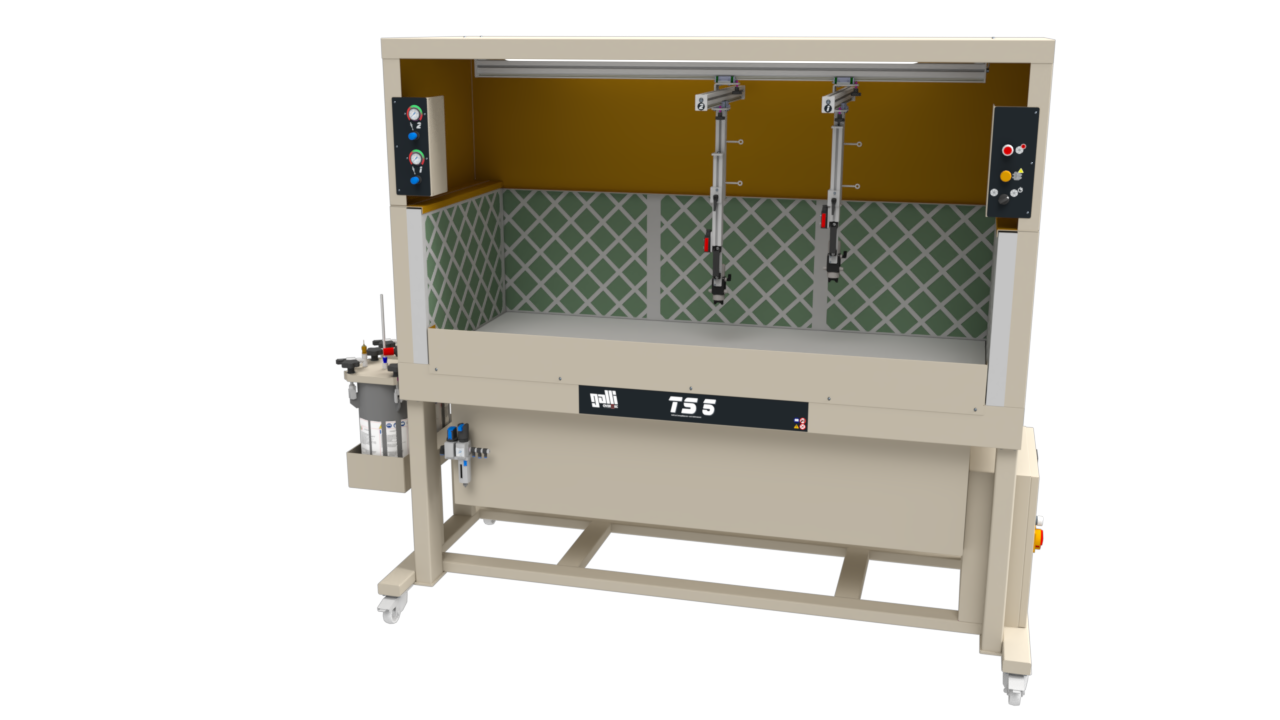

TS 5

Suction booth for spraying water-based adhesives, working area cm 170 x 70

• The spray gun, mounted on an ergonomic balancer, ensures comfortable use even during prolonged work, while the 10L stainless steel tank guarantees reliability and durability over time
• The model TS1 can be used in the shoe manufacturing for upper’s bonding and for bonding belts, bags, wallets and small leather goods
• It can apply any water-based adhesives, synthetic and natural latex of any viscosity
• Machine structure with increased suction area

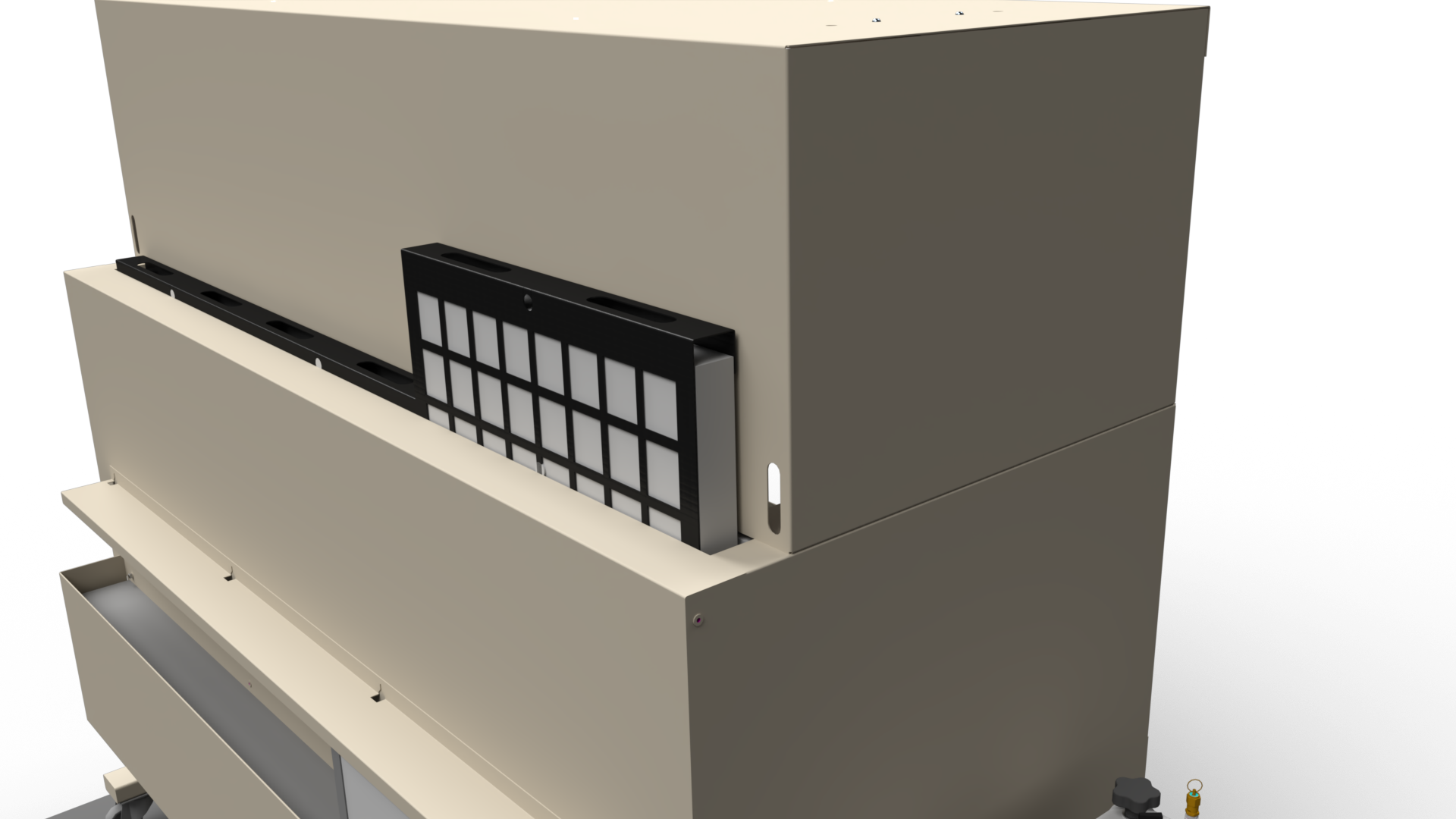

• The high-efficiency extraction system captures overspray directly from the worktop, side and rear surfaces, helping to keep the work area clean and safe. It features high-efficiency Class F7 / ePM1 60% filters at the rear

Available with different spray gun models:

• Microspray TS5-31  (4 – 30 mm)
• Inox TS5-2 (10 – 50 mm)
• HV101 TS5-HV1 (15 – 150 mm)

Optional:

• TS5-HV1-XY, version with spray gun HV101 and X, Y axes
• Additional filters unit with liquid column gauge
• Second HV101 gun/tank kit, for mod. TS5-HV1-XY
• Second HV101 gun/tank/weight balancer kit, for sliding rod model
• Electronically adjustable telescopic legs
• T5 – suction booth only
