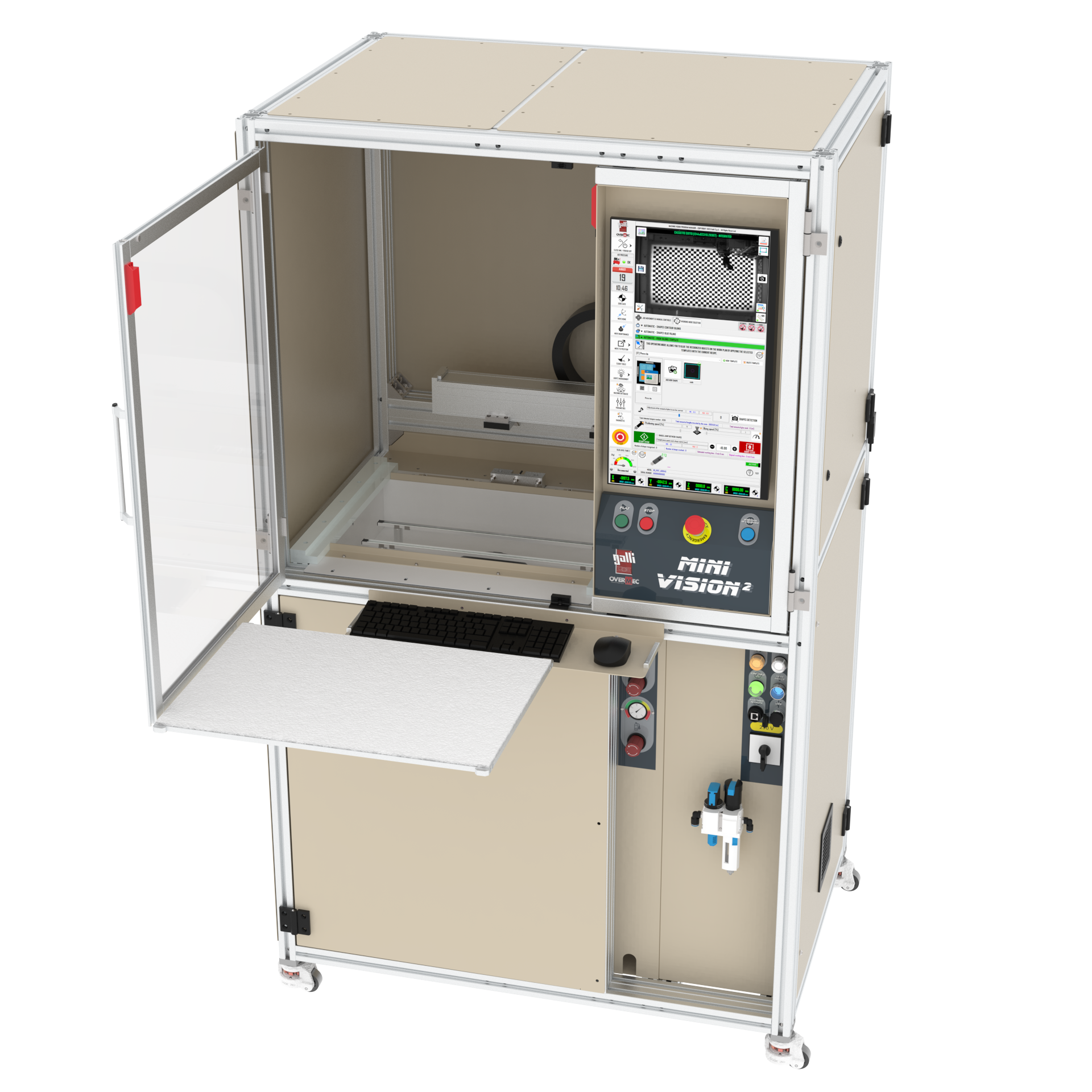

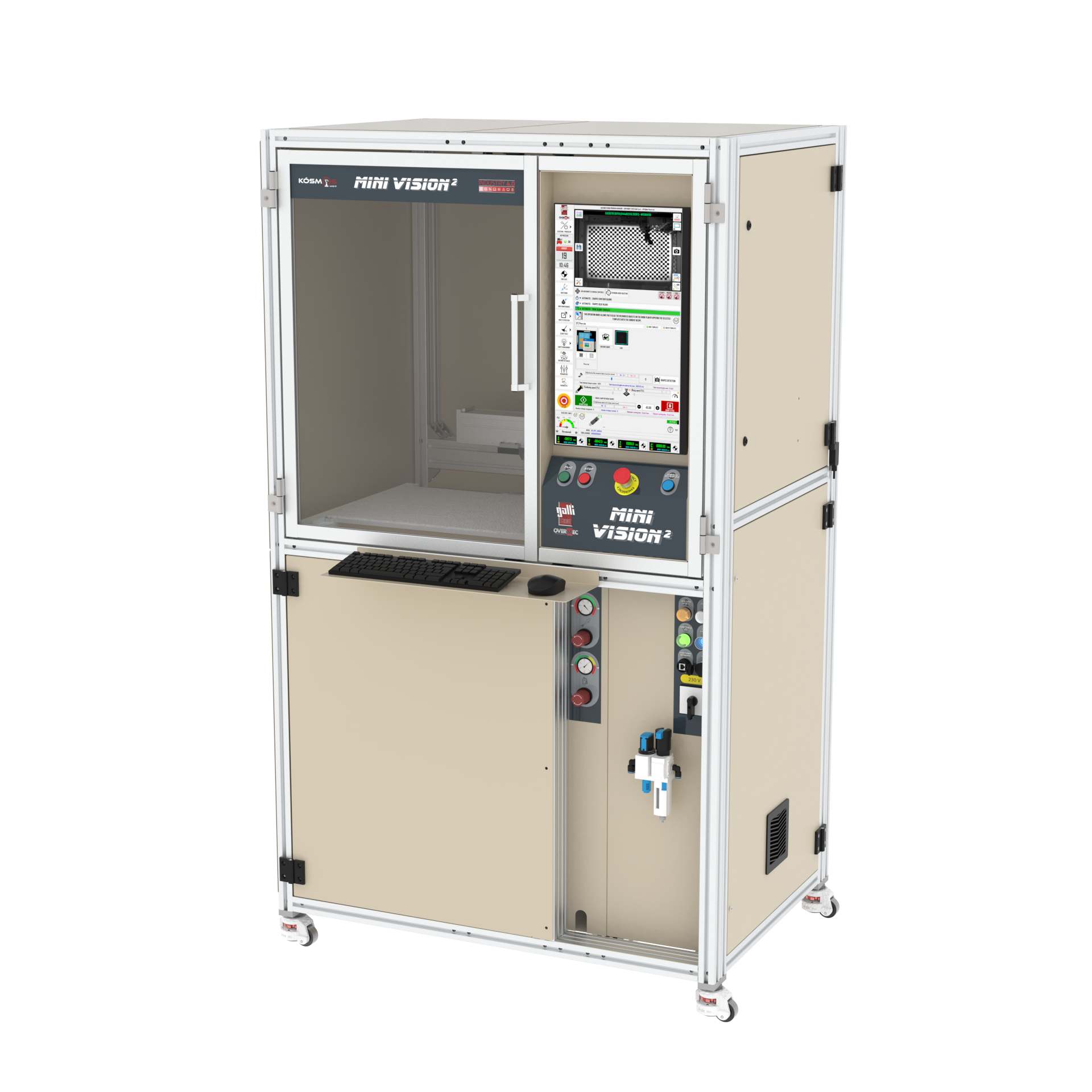

MINI VISION²

Compact CNC three axis gluing robot with machine vision system

• This machine uses water-based adhesives
• Working area X mm 580, Y mm 380, Z mm 130
• The material to be glued is positioned on the table with a vacuum system

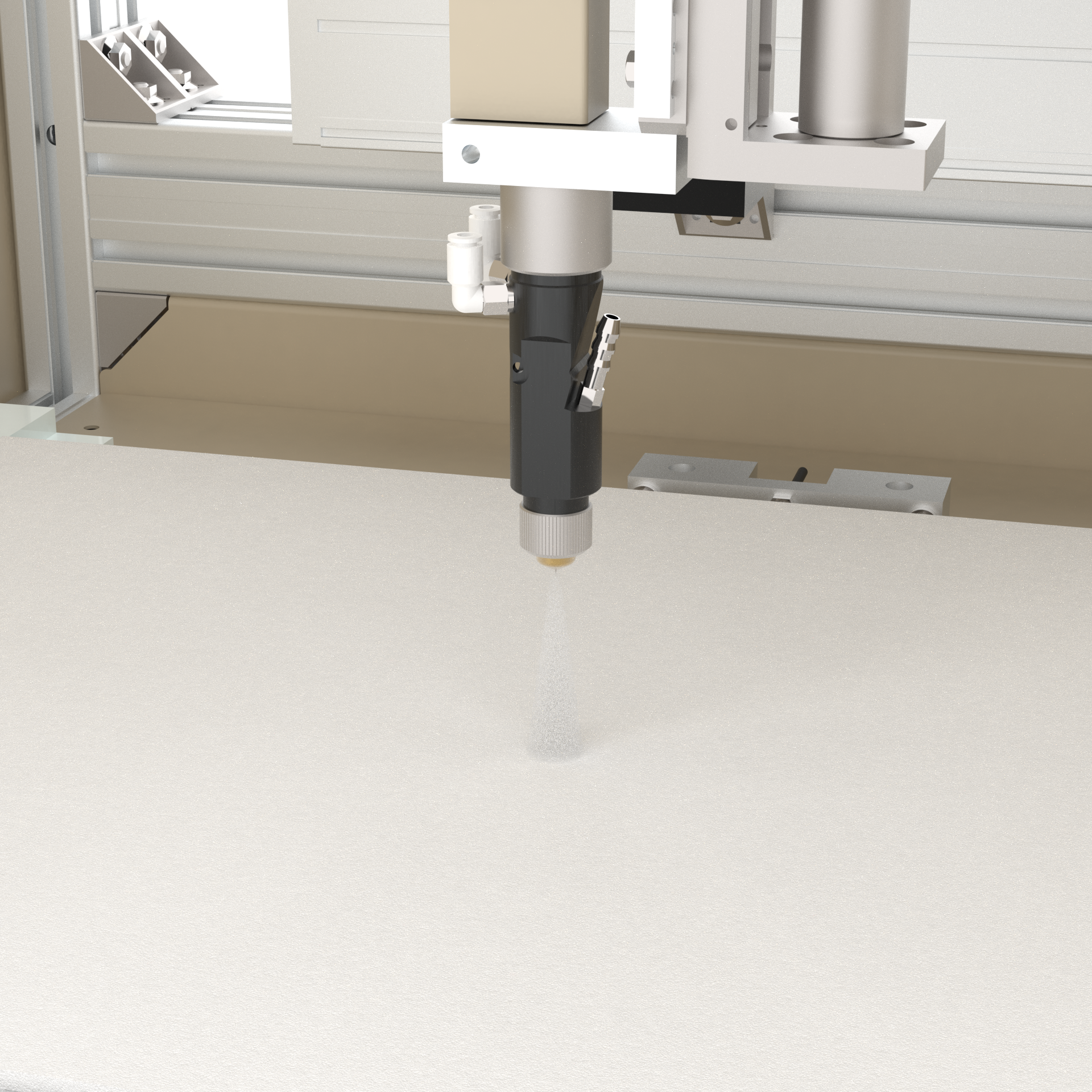

• Spray gun with quick connection: one high precision gun (4-30mm)
• The machine is connected to a industrial Computer on which is installed Kosmos software to control the working cycle
• High resolution camera with CMOS sensor
• This machine, using optical machine vision system, is able to automatically detect the pieces positioned on the working table and can glue them in a precise and rapid way. The number of pieces that the machine can recognize is unlimited
• If the machine is connected to Internet Galli can do diagnostics and on-line technical assitance
• Augmented filtration system with cartridge filters and saturation control
• Automatic guns cleaning system
• 27″ HMI display

Optional

• Industry 4.0 version with or without electronic tank weighter
• Glue flow sensor for glue dispensing control
• Dosing Valve for water-based adhesives
